1. Use of equipment:

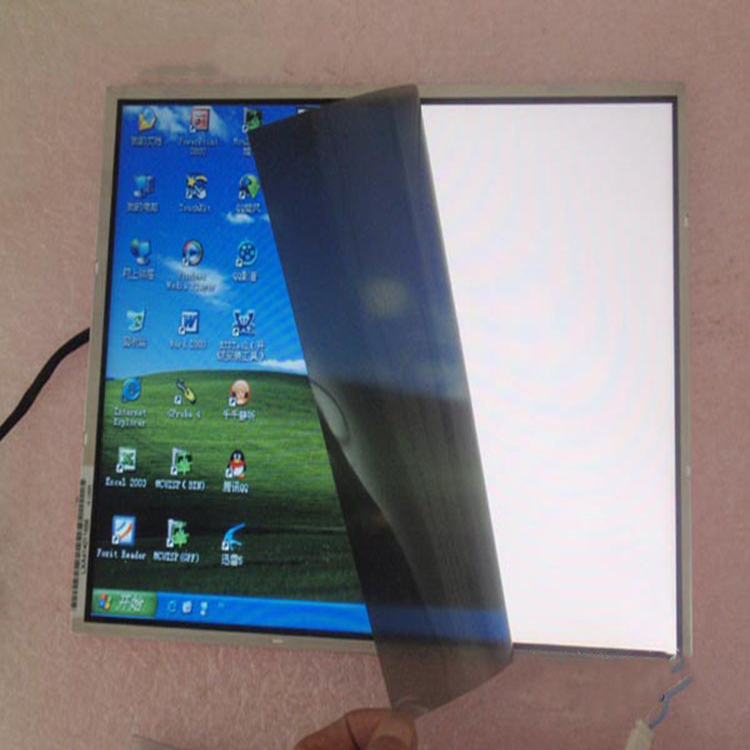

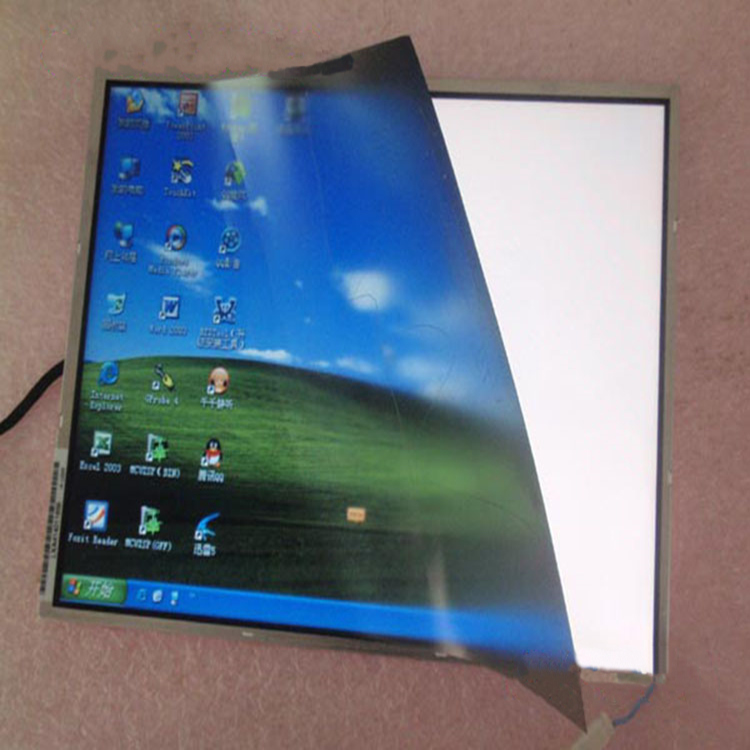

LCD tv screen repair machine. LCD tv panel opencell change polarizer film. This equipment is suitable for filming equipment that needs to replace the polarizing film when the surface of the liquid crystal screen is scratched or scratched during maintenance or use. To put it simply, it is to tear off the protective film (polarizing film) on the outside of the LCD film, and then replace it with a new surface film (polarizing film), which is suitable for the renovation of the LCD screen.



2. Equipment description:

Production, processing and maintenance of LCD screen polarizer film front side and back side polarizer.



3. Equipment Parameter

LCD Screen Polarizing Film Laminating Machine

Device Model

SM38060 32 inch/ 65 inch/ 80 inch/ 100 inch

Device Description

Polarizing Tear Film Machine principle by manually tearing about 8-10 cm diagonal openings,
using the viscose wrapped around the  tape,
fixed to the device tear film roll. Start up high power frequency conversion motor.
Let the LCD screen Polaroid peel.

Device Uses

Polarizing Tear Film Machine refers to various kinds of LCD assembly and rework process,
surface scratches and other defective products LCD polarizing film peel technology equipment.
In particular, especially suitable for thin, large LCD panel Polaroid lift-off process.

Specifications

Applicable to the 32 inches/ 65 inch/ 80 inch / 100 inch LCD panel operation



Function characteristics

1,Selection of high precision concentric roll teeth with the same force tear film,

it has easy to slip,high precise concentric gear steel roller for removing film,

which can avoid skid, distortion clearance

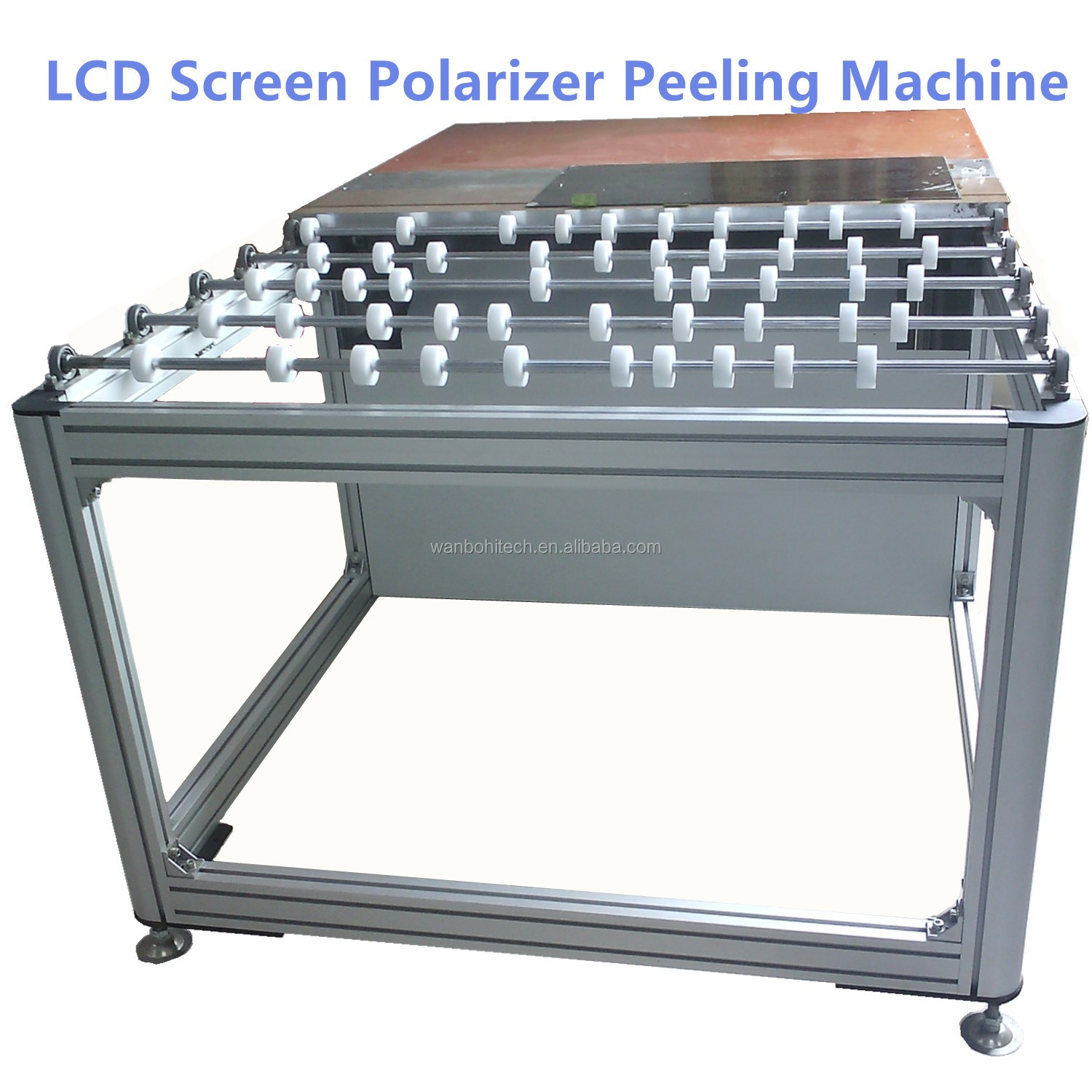

2,Using nine concentric and same level  anti-static as auxiliary stage,

greatly reducing  the tear film process of due to non-horizontal force or moving resistance

arising the breakage rate.



3,During equipment operation , equipped with high-power long-range

anti-static ion fan electrostatic elimination



4,using Japan temperature controller four partitions preheat,

and built-in PID temperature self-tuning function modules,

make speed control more precise.



The device parameters and specifications can be customized
and modified according to customer requirements

Basic parameters

Input Power:AC220V  50-60HZ (AC110V Customize)

Rated power: 2-6KW

Working pressure:0.4-0.8MPA

Static Elimination:Ion wind Elimination

Peel speed:Software adjustable

Heating Type:Thermostat Heating(Four partitions)

Temperature Range:RT-500℃ (Adjustable)

Body main material:Electrophoresis type aluminum of high-strength

Applicable size:32 inches, 65 inch, 80 inch, 100 inch

Thermocouple: K type

Operating mode:Temperature Controller

Dimensions

1400*900*1300mm(L*W*H)

2000*1250*1300mm

2200*1450*1300mm

3000*1750*1300mm

Total Weight

200KG/350KG/450KG/550KG


































































4, functional characteristics

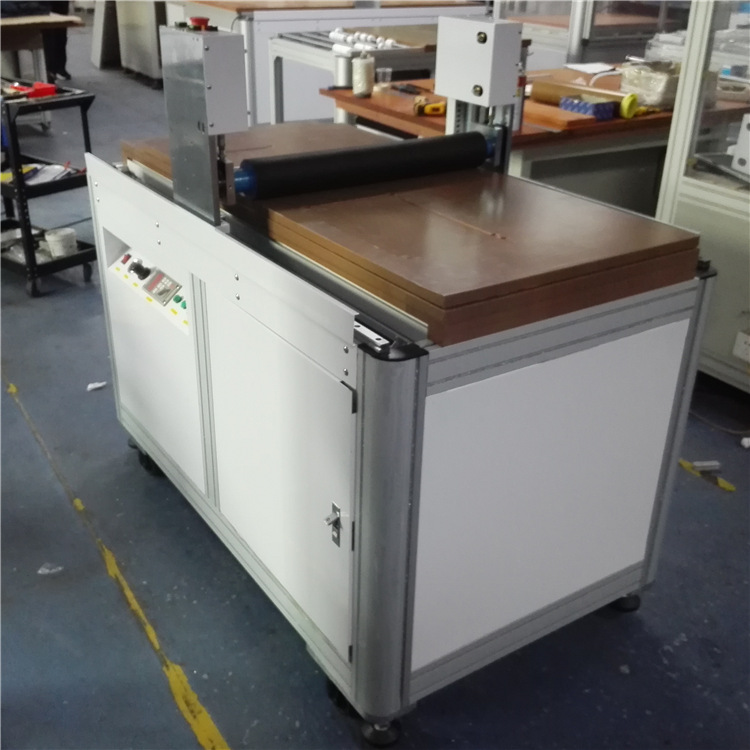

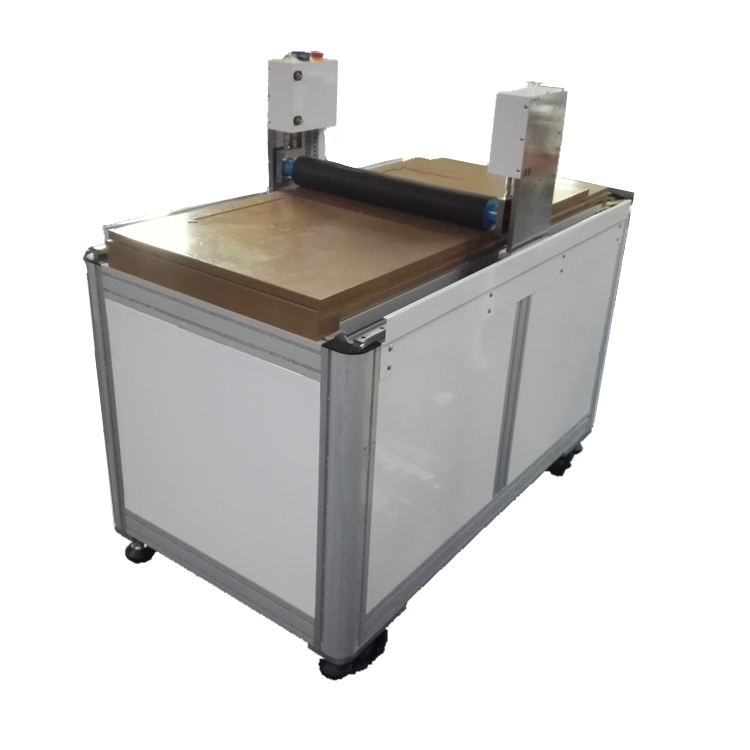

(1) The equipment adopts high-strength aluminum profile as the main frame, and the bonding platform adopts electric wood board as the LCD fixed carrier. The surface is affixed with high-temperature Teflon tape, which has smooth horizontal without gap and beautiful appearance.

(2) The laminating device adopts the dust-free smooth anti-static soft glue stick 120 degree flip seamless fit design to meet all the flat plate bonding process requirements.

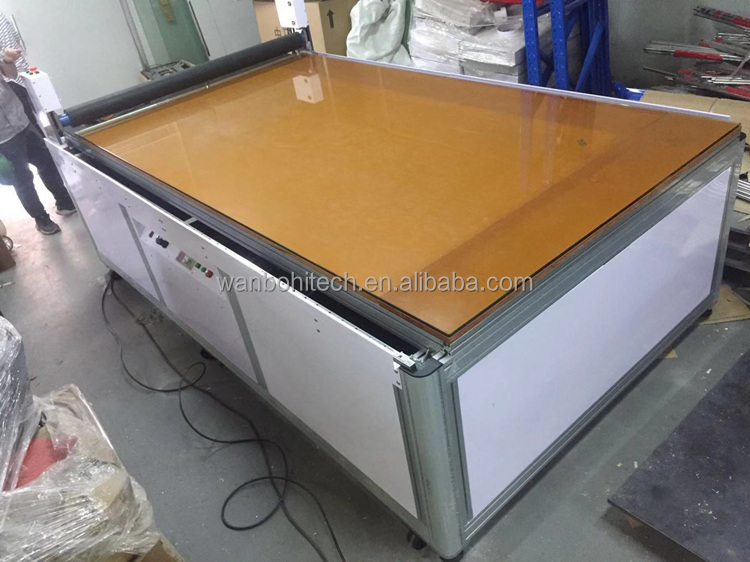

(3) The built-in vacuum adsorption function of the bakelite platform ensures that the flat plate is 100% firm and flat in the lamination, which greatly improves the bonding process and efficiency.

(4) Ultra-long rubber roller design, driven by high-precision screw, double-cylinder synchronous thrust fit, with elastic foot, large contact surface, no bubble, stable speed and so on.

(5) The circuit and pneumatic components are all made of precision components, and the fitting speed and pressure are accurate, which meets the requirements of high-precision bonding process for large-area flat panels.

(6) The software system has built-in 50 sets of parameter settings, which can set the frequency, torque, braking time, multi-function terminal setting and control source selection according to actual needs.



5, after-sale service

1. Training:

Order equipment and send factory-level training. Our company trains the buyer's technicians free of charge on the daily maintenance of the equipment, equipment operation, technical methods of LCD film surface film replacement, and the number of training places is four.

2. Installation:

Our company is responsible for the installation and commissioning of the equipment, and completes the work within the date stipulated in the contract, and invites the buyer to accept it in time.

3. Acceptance:

Equipment acceptance shall be checked and accepted in accordance with national standards and specifications and contractual requirements of both parties.

4, warranty period:

The equipment main spare part is free of charge for one year warranty.
