815SH Single Head 1.4mm LCD Repair ACF COF IC Bonding Machine For 12-65 inch LCD TV Panel Screen Open cell

lcd bonding machine, lcd repair machine, COF bonding machine, ACF bonding machine, flex bonding machine, tv screen repair machine

Features:
1, PLC control, pulse heating mode, combined with titanium alloy extrusion head, rapid heating and rapid cooling, can be set up four heating, accurate temperature control.
2, 5.7 "color touch screen LCD display input, realizing the temperature curve, according to the Chinese menu, all the parameters set browse concise and straightforward.
3, large load platform, stepper motor drive, multiple IC can be preset position, the platform automatically move the pressure to stay.
4, para way under the high magnification camera system, ensure that the product clearly counterpoint.
5, powerful software, perfect the system debugging, automatically detect fault and alarm function.

Technical parameters:

The system control is: Panasonic - PLC control (single)
Production parameters have store brands on the market are samsung, LG, sharp, chi mei, auo, huaxing photoelectric, Hitachi, hanyu display, Huasheng, Zhonghua etc. Four different temperature set points starting temperature, the temperature of the first paragraph, the second section temperature, cooling temperature.PLC and touch screen communication, can according to production needs to extend the production process automatic control function. System automatically detect, abnormal alarm display function, make the equipment maintenance more quickly.

The stability control is: Panasonic - TC2
Imported temperature sensing line and Panasonic's newest chips (TC2) make more accurate temperature control, with fast heating time, temperature precision higher characteristic, and add heating curves and parameters of synchronous display.

The operating interface is: WV full-color PDA (single communication)
6.5 -inch intelligent man-machine interface, programmable controller (PLC) control system, make the equipment operation is stable and reliable.

Heating method: pulse heating mode
Fast heating/cooling and auxiliary cooling function. High quality titanium alloy head, automatic temperature compensation function, make the temperature more accurately.

High precision counterpoint: micrometer counterpoint
Equipped with advanced optical alignment system, fully satisfy the product clear counterpoint and production of precision, para X, Y, Z axis adjustment adopts high-precision micrometer regulator, slippery course synchronous operation, ensure that para a higher precision.19 inches large screen display contrapuntal line electrode, makes the registration faster, more generous appearance.

The size of the maintenance and brand:
Unlimited size and the screen card TFT LCD, LED screen, TAB, COG and PCB bonding.

Repair the fault:
Vertical, horizontal, vertical, horizontal, black belt, the black line, the color line, ribbons, multi-line, flower screen, black screen, white show, horizontal, vertical half and half, fault, and so on.

880SH models is exclusively to domestic original installed after-sales service and a number of patented products.

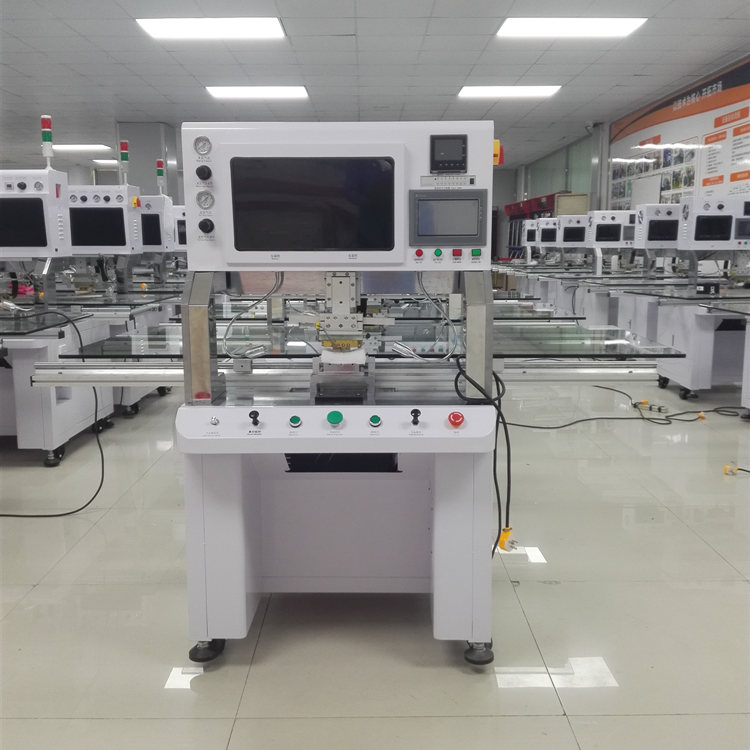

816 model Single head COF bonding machine

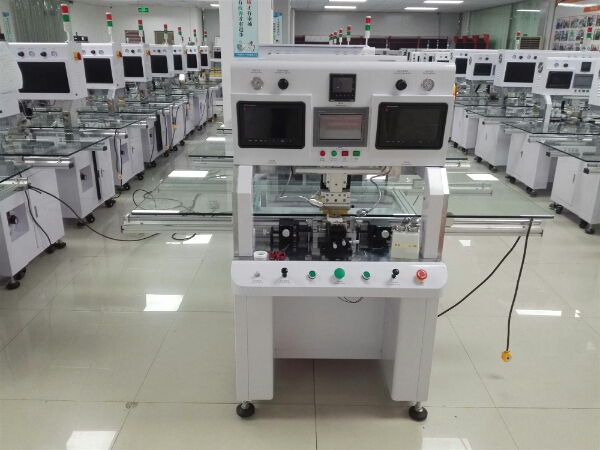

916SH model single head COF bonding machine

Accessories for machine, you can directly start tv screen repairing work after receive machine.

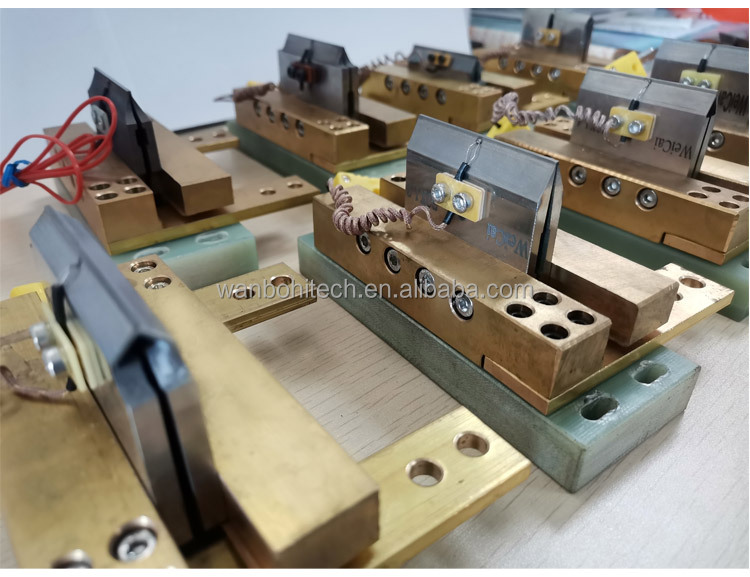

Bonding Head for Different size of COF IC, customer can choose different size bonding head.
