Name

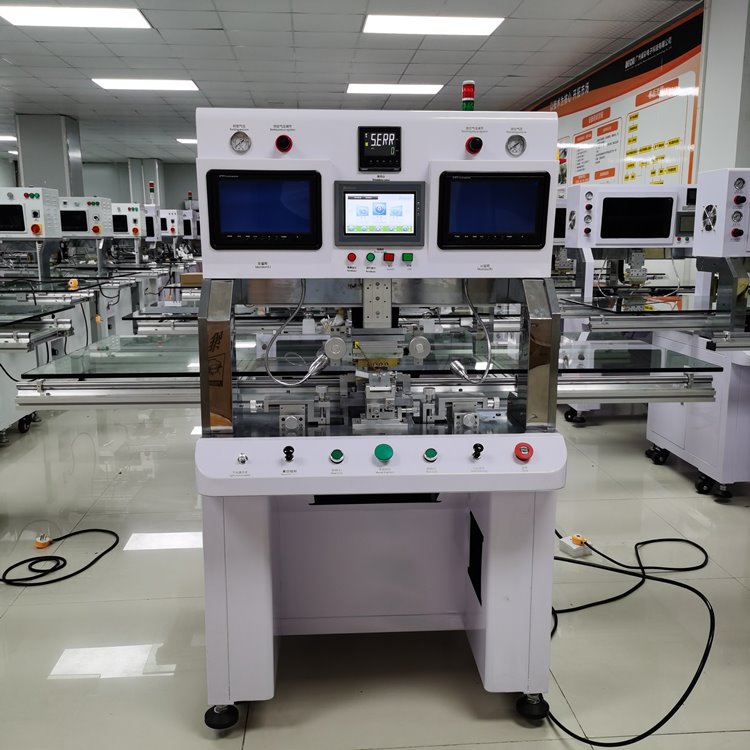

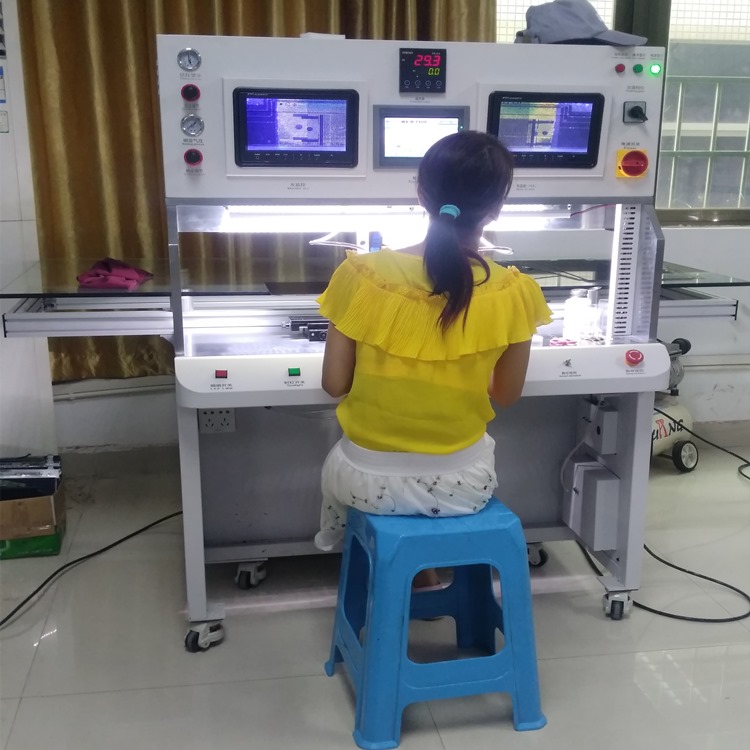

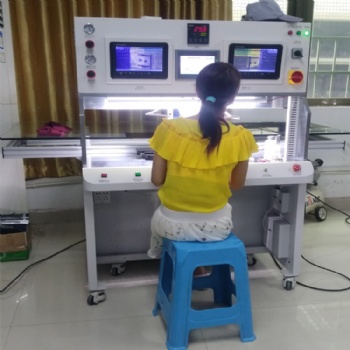

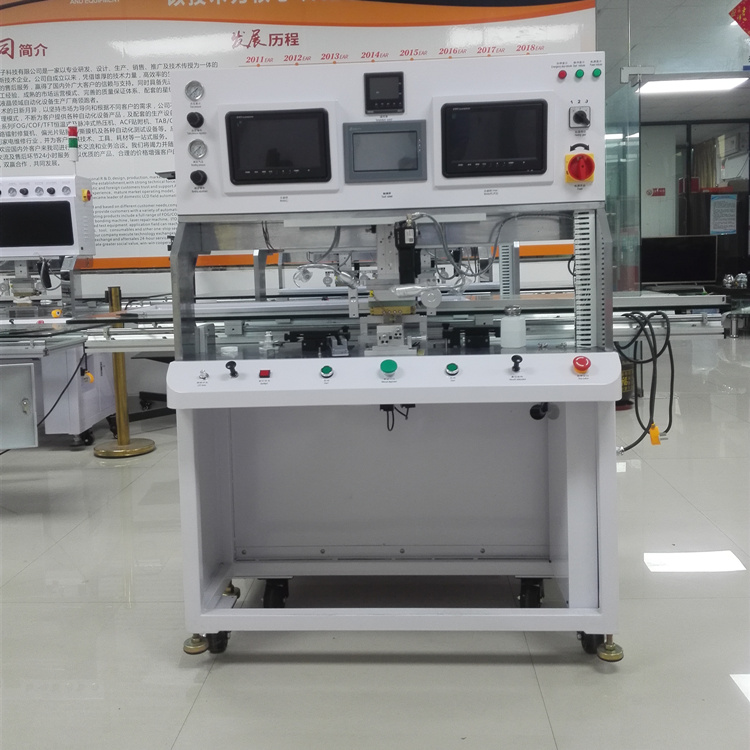

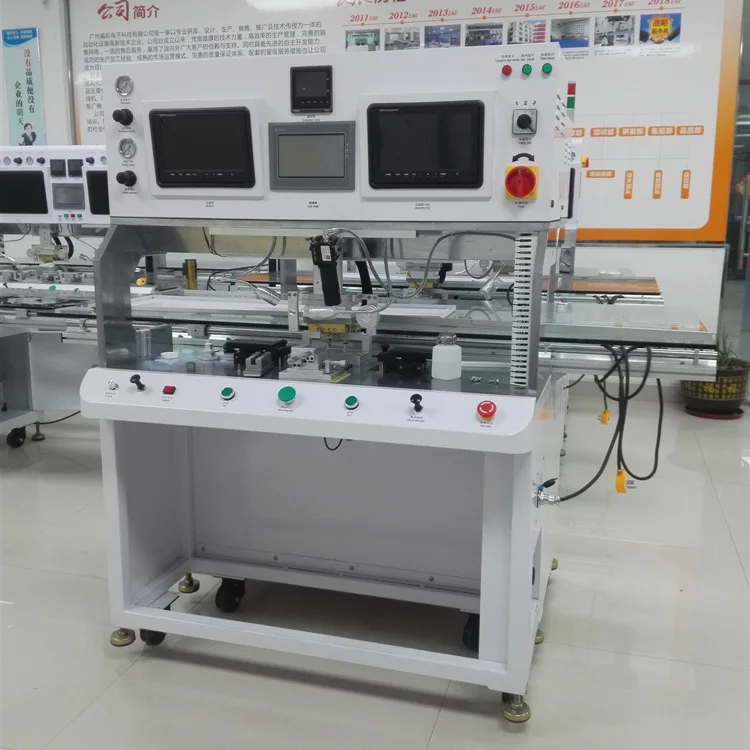

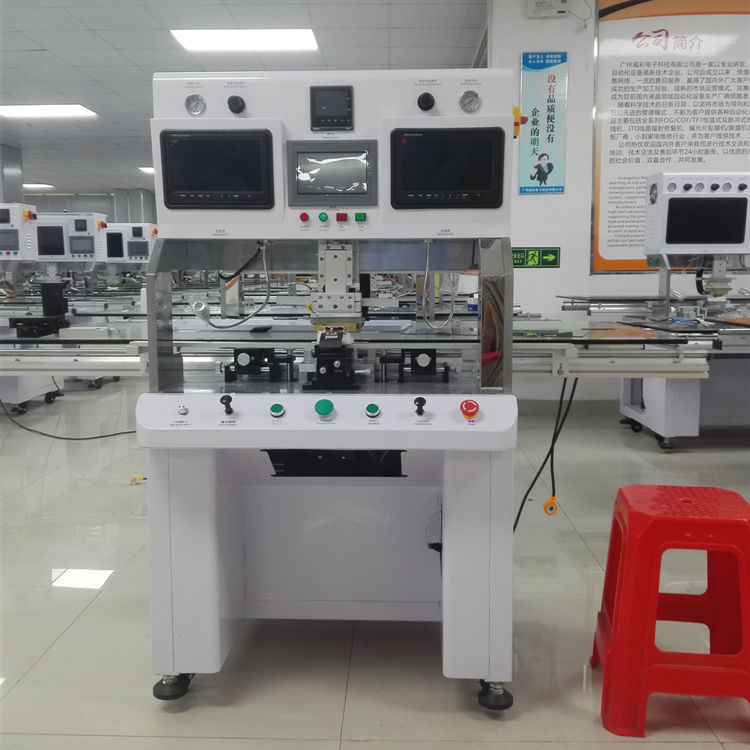

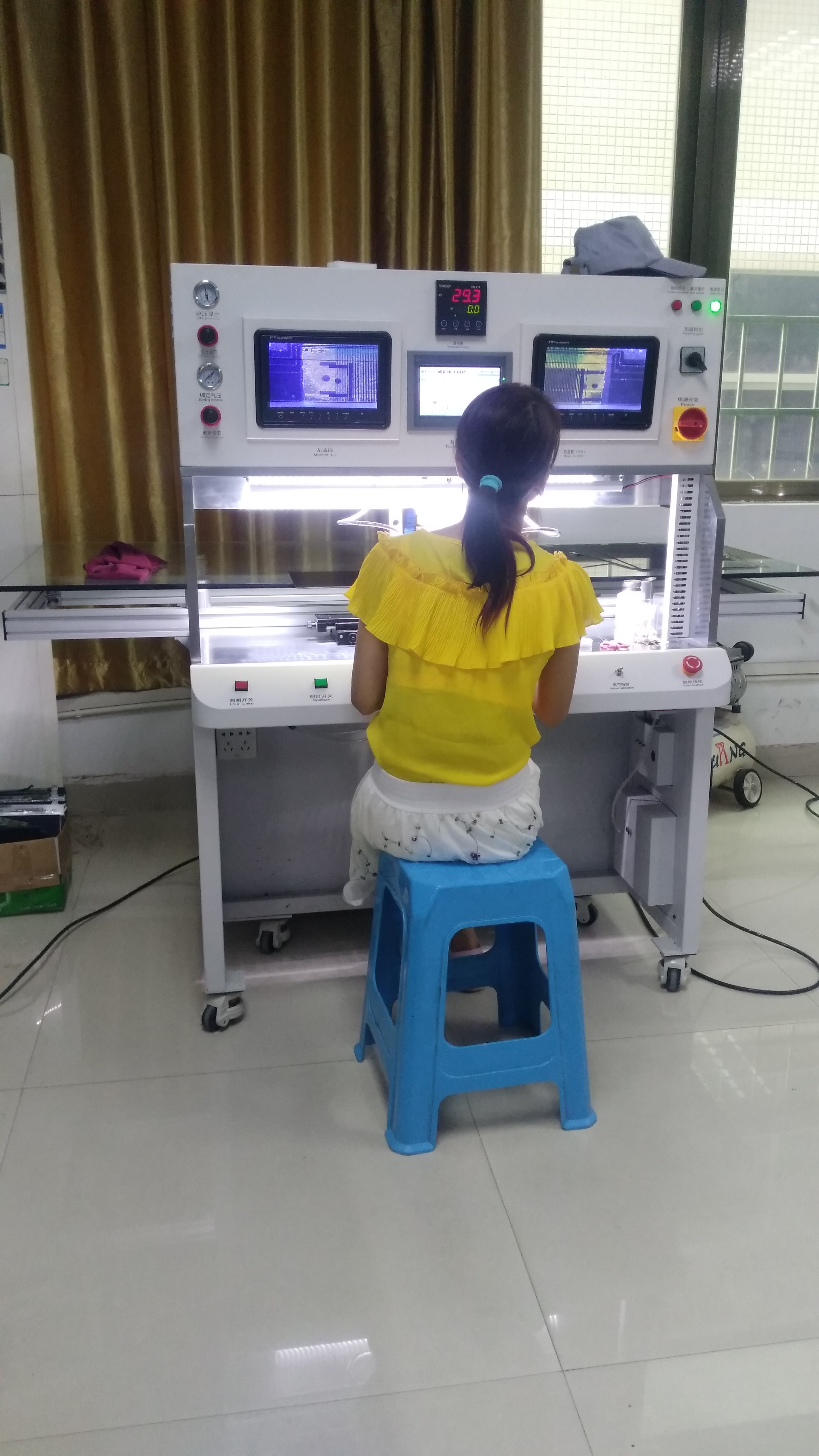

Hot Press Machine, COF bonding machine

Model

916SH

Description

LCD/LED Screen Repair Machine ,COF/TAB Bonding Machine

Equipment features

Single head , Single pneumatic devices, Single temperature control

916SH is a high-precision, multi-functional bonding equipment; the cylinder structure uses a special buffer to eliminate dead weight, accurate pressure, and high output precision; pressure dual-channel control, convenient to meet the different pressure requirements of two processes; easy pressure head adjustment, single direction Independent adjustment, fast and convenient; The LCD vacuum adsorption function of the bonding area is designed to ensure that the binding product is firmly adsorbed, and it solves the position shift caused by the traditional glass platform cannot adsorb the product. It is connected by aerial plug connector, which is safe and convenient; the PCB bonding area adopts the front-mounted alignment camera system, which can clearly observe and judge the COF end and PCB alignment image, which is flexible, convenient and clear at a glance, improving work efficiency and bonding success rate.

Uses

This product is used in a variety of FPC, COF, TAB and LCD Panel and PCB combination bonding, is reflected in a variety of sizes LCD vertical, horizontal, vertical band, horizontal belt, black belt, black, colored thread, ribbon , multi-line, Huaping, black, black and white, vertical half display, horizontal half was breakdown maintenance.

Applicable LCD panel specifications

15"-65"(platform expandable)

Applicable LCD panel thickness

0.3MM-1.1MM[Single layer glass]

Panel type

TFT

Bonding IC number

One COF/Panel

Bonding  direction

X or Y Unidirectional

Bonding head size

The original machine is equipped 50X1.4X10MM                (Replaceable blade according to IC specifications )

Device processing time

3.8S/chip

Production Beats

TAB,100pcs/H

Bonding Accuracy

± 1.5μm  (support 4K screen)

Highest positioning accuracy setting

±0.5μm

Equipment requirements the work environment

Clean, No dust, Clean room

Supply Pressure

0.1~0.7Mpa (Dry air source)

Power Supply

AC 220V±10%,50HZ,3500W

Cylinder Device

AirTAC Original precision cylinder

Pressure Systems

Pressure system parallel bars structure can eliminates Indenter own weight, the pressure minimum accuracy to 0.1KG, pressure part both are use SMC precision components

Heating Type

Pulse (rapid heating / cooling and auxiliary cooling function)

Temperature Control System

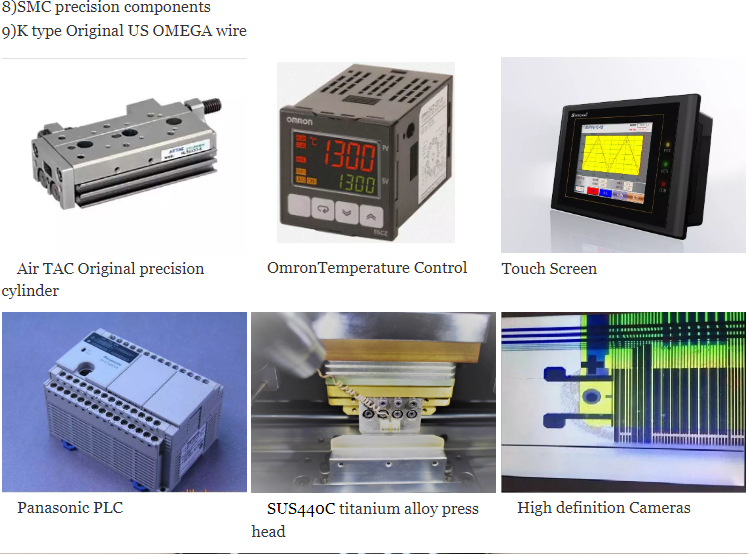

Brand:Omron

Adjustable heating curve Precision PID self-tuning type

The peak temperature : within +/- 1 degrees Celsius

Room temperature time to 180 degrees the response time within 2-3 seconds

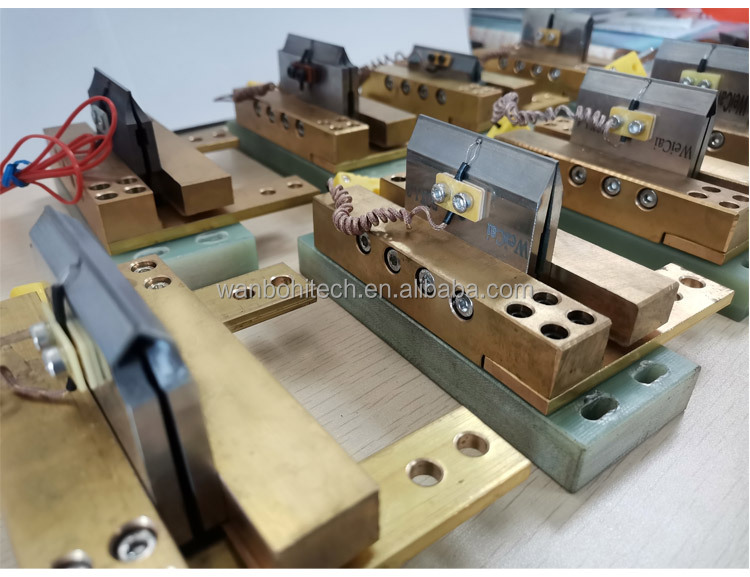

Hot pressing head

Material: Titanium alloy

Metal properties: SUS440C

Origin: United States

Plane precision (hot press side) :±0.001mm

Plane thickness 0.5  (Reserved 3 times grinding)

Thermocouple Type

K type Original US OMEGA wire

Industrial control units

Import Panasonic PLC FX-C14T

Panasonic image processing system

Touch unit

Samkoon dual-core touch screen

Image unit

COF counterpoint: down counterpoint (optical path: lens > quartz > ITO electrode > COF)

PCB counterpoint : Top registration, front HD CCD camera

Number of lenses : 3

Microscopy: 30-120 Continuous zoom

COF Display: 9-inch HD color screen

PCB counterpoint the display : Direct display switch

Upper light source : Have

Down light source : Have

COF trimming unit

Origin: China

Rail Type: U-rail

Accuracy : 0.01

Adjustable direction :X/Y/R

R Itinerary : Coarse 360 degrees, fine tuning +/- 5 degrees

COF Fixture

COF mechanical clamping type, Z tilt radius  micrometer trimming

Lens spinner unit

Control mode: X / Y / Z micrometer control

Focus Adjustment: Manually adjust the focus

Silicone / Teflon

Manual switching position

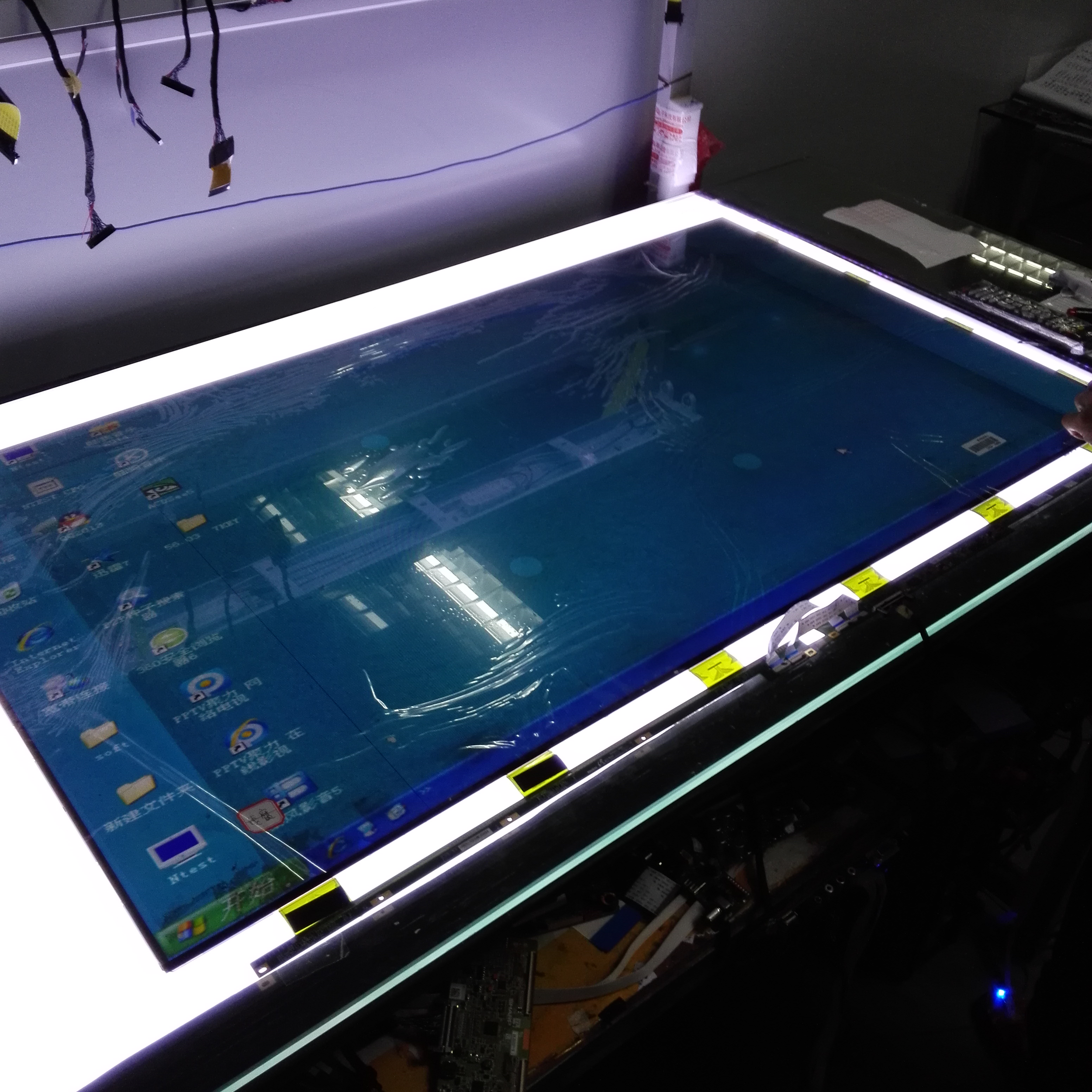

LCD Platform

Manual sliding / Fixed platform

Control mode

Touch screen + button operation

Parameter setting

According to the need to set up Store multiple sets of hot pressing parameters

Rated voltage

180-220V (customizable 110V)

Peak power

400-1100W(Supports 68X1.4X10 lengthened head)

Maximum power

1100W

Actual power

580W

Number of packages

 2 PCS

Packaging Material

Wooden box, non-wood (The object is glued wood board, and the outlet does not need fumigation)

Machine size

1800X1200x1520mm(L*W*H)

Machine net weight

350KG

Package Size and Gross Weight

main body: 1240X840X1520 mm(L*W*H)   300KG

platform: 1920X240X960 mm(L*W*H)   110KG

Warranty and tech support

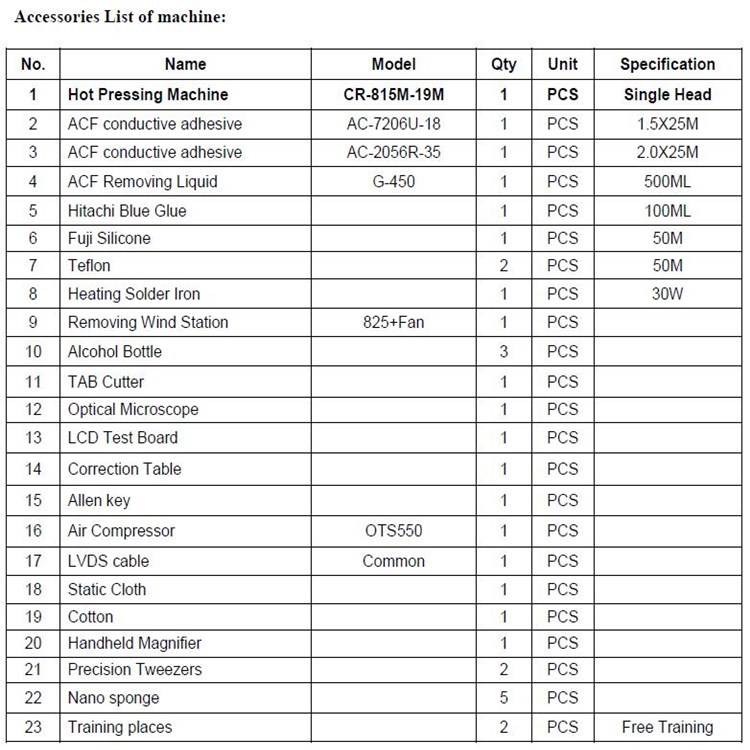

1 year warranty, life time spare parts service, online tech support, free study technology in factory etc. support.
