TAB COF COG FPC FOG ic bonding machine ACF bonding machine cheap price lcd tv repairing machine

Hot selling cheap price single head COF bonding machine LCD tv repair machine

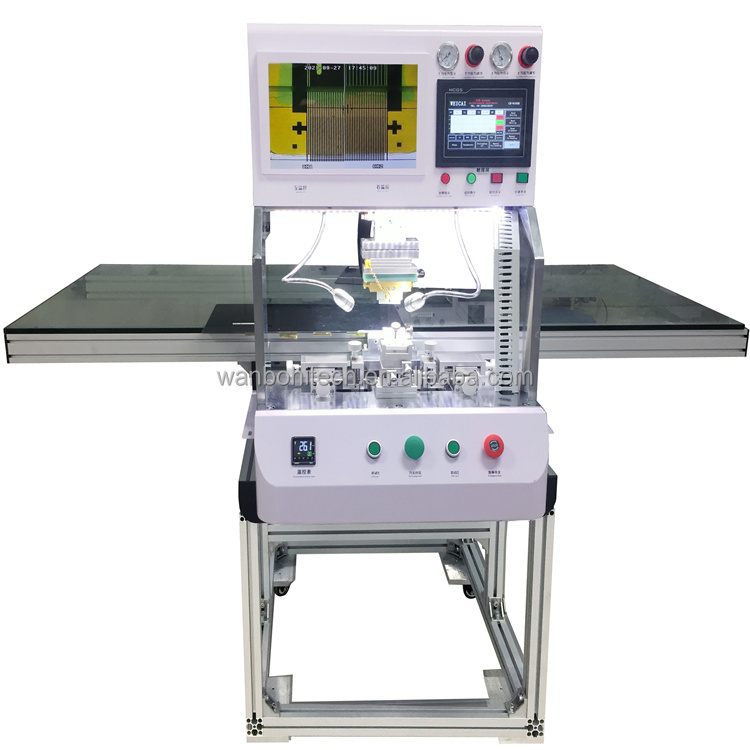

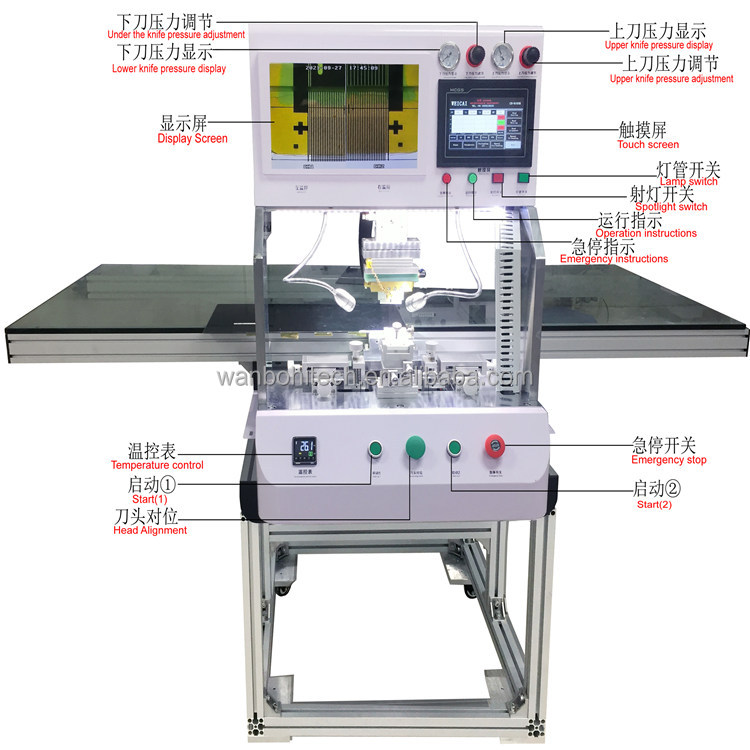

818SH Signle Head LCD screen TAB COF FOG FPC COG ic bonding machine, ACF bonding machine, LCD screen repairing machine, Ribbon COF bonding machine, Hot press machine, OLED QLED LCD TV 4K 8K Laptop screen COF Bonding repair Machine

The system control is: Panasonic - PLC control (single)

Production parameters have store brands on the market are samsung, LG, sharp, chi mei, auo, huaxing photoelectric, Hitachi, hanyu display, Huasheng, Zhonghua etc. Four different temperature set points starting temperature, the temperature of the first paragraph, the second section temperature, cooling temperature.PLC and touch screen communication, can according to production needs to extend the production process automatic control function. System automatically detect, abnormal alarm display function, make the equipment maintenance more quickly.

The stability control is: Panasonic - TC2

Imported temperature sensing line and Panasonic's newest chips (TC2) make more accurate temperature control, with fast heating time, temperature precision higher characteristic, and add heating curves and parameters of synchronous display.

The operating interface is: WV full-color PDA (single communication)

6.5 -inch intelligent man-machine interface, programmable controller (PLC) control system, make the equipment operation is stable and reliable.

Heating method: pulse heating mode

Fast heating/cooling and auxiliary cooling function. High quality titanium alloy head, automatic temperature compensation function, make the temperature more accurately.

High precision counterpoint: micrometer counterpoint

Equipped with advanced optical alignment system, fully satisfy the product clear counterpoint and production of precision, para X, Y, Z axis adjustment adopts high-precision micrometer regulator, slippery course synchronous operation, ensure that para a higher precision.19 inches large screen display contrapuntal line electrode, makes the registration faster, more generous appearance.

The size of the maintenance and brand:

Unlimited size and the screen card TFT LCD, LED screen, TAB, COG and PCB bonding.

Repair the fault:

Vertical, horizontal, vertical, horizontal, black belt, the black line, the color line, ribbons, multi-line, flower screen, black screen, white show, horizontal, vertical half and half, fault, and so on.

880SH models is exclusively to domestic original installed after-sales service and a number of patented products.

Features:

1, PLC control, pulse heating mode, combined with titanium alloy extrusion head, rapid heating and rapid cooling, can be set up four heating, accurate temperature control.

2, 5.7 "color touch screen LCD display input, realizing the temperature curve, according to the Chinese menu, all the parameters set browse concise and straightforward.

3, large load platform, stepper motor drive, multiple IC can be preset position, the platform automatically move the pressure to stay.

4, para way under the high magnification camera system, ensure that the product clearly counterpoint.

5, powerful software, perfect the system debugging, automatically detect fault and alarm function.

Application: suitable for 12-80inch TFT panel and TAB, FPC and LCD or PCB board combination bonding.

Technical parameters:

More models LCD tv repair machine ACF COF bonding machine

Good Quality Main Spare Parts

We have many models Single Head COF bonding machine for customer choice:

815S Mini 1 Screen display Single Head COF Bonding Machine 65 inch platform 2 camera (front camera option)

816S Mini Type 2 Screen display COF Bonding Machine 65 inch platform 2 camera (front camera option)

916S Medium Type Single Head 2 screen COF Bonding Machine 65 inch platform 3 camera

880DH Double Head 2 Screen OLED QLED LCD TV 4K 8K Laptop screen COF Bonding Machine 3 camera, 65 inch platform, 85 inch, 105 inch option;

LCD LED OLED QLED 4K 8K TV screen panel opencell laptop display laser repair machine 85 inch

TV screen laser repair machine working video please contact manager to get.

Bonding Head Assembly and Bonding Head Blade Parts

1. Machine Training:

Free training in factory is provided.

Customer can self learning and practise by watch video and user manual. Any question not understand can ask our engineer.

2. Machine Warranty:

1 year warranty for machine main parts.
